Complete Screening, Washing & Fines Recovery Solutions for the Philippines

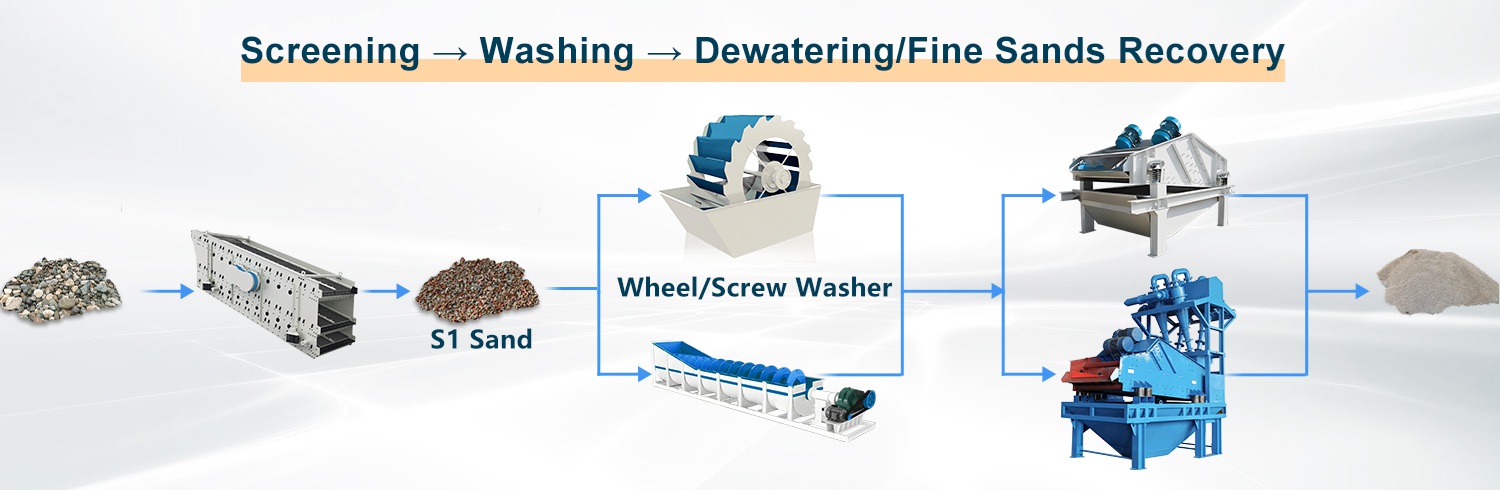

Optimize your aggregate production with our proven 3-stage process: Vibrating Screen → Wheel Washer / Screw Washer → Dewatering Screen engineered for high-clay, high-moisture Philippine materials.

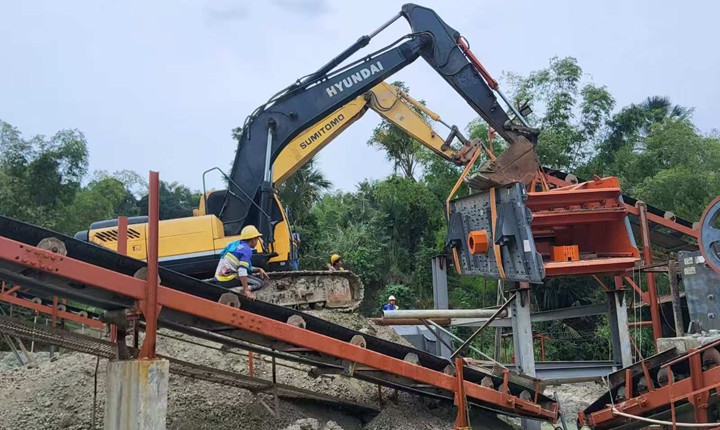

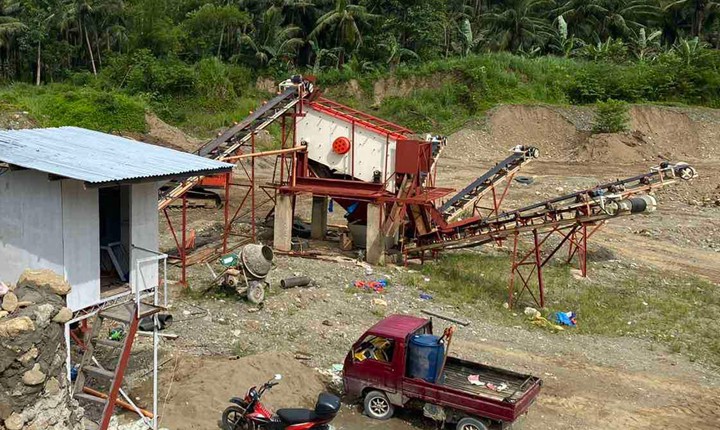

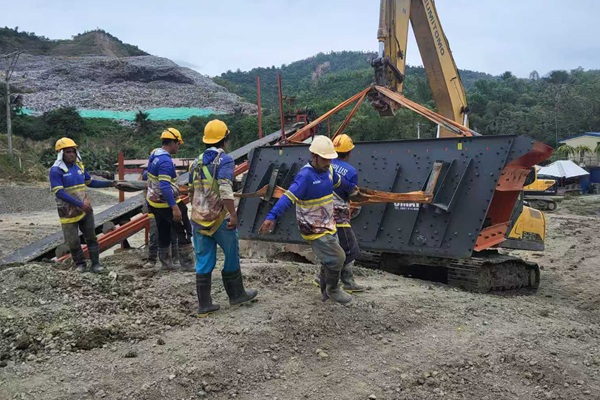

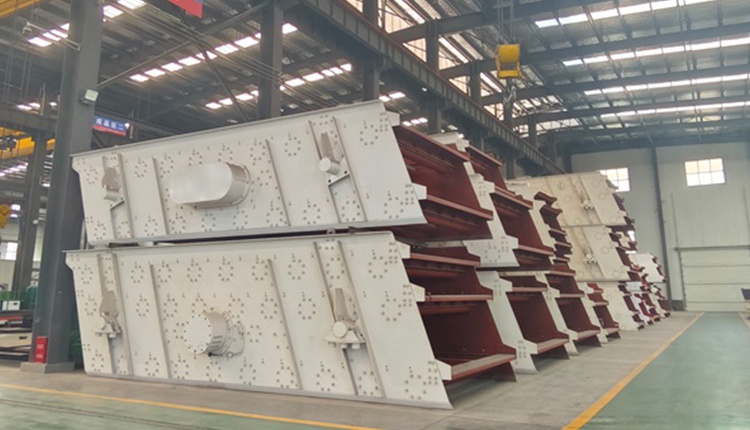

Vibrating Screen/Sand Separating
Best for: Primary and secondary screening of aggregates, dewatering, and pre-wash scalping.
Key Features:
Multi-deck design (2-4 layers) for precise classification.
High-frequency vibration for excellent screening efficiency.
Modular screen panels for easy replacement.
Available in mobile (wheel-mounted) version.

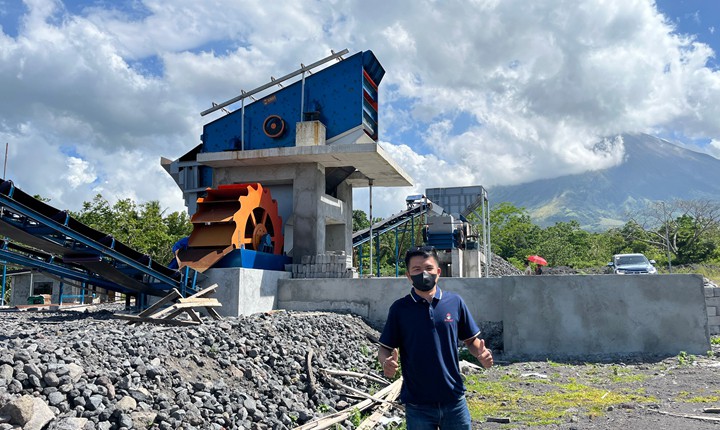

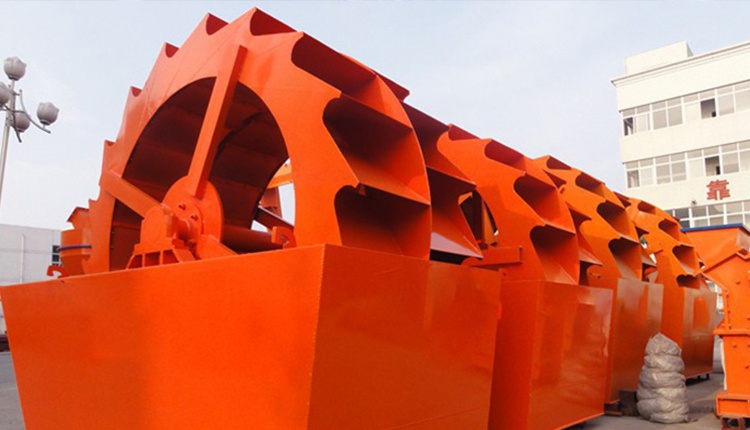

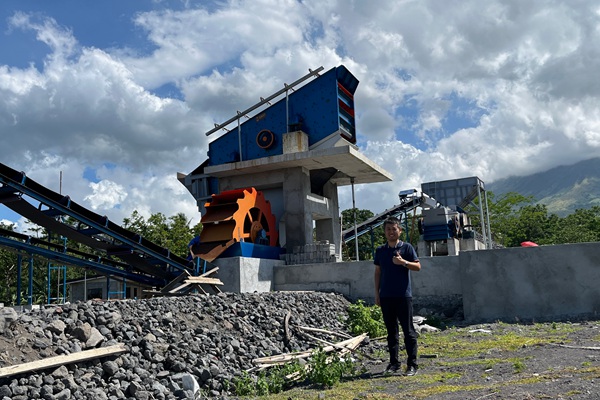

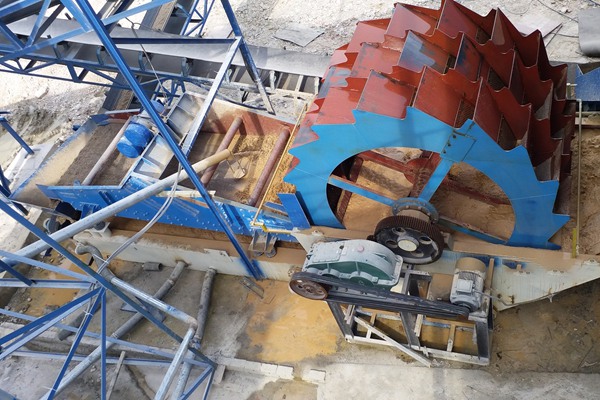

Wheel Sand Washer
Best for: Washing and dewatering sand (0-10mm) with low to medium clay content.
Key Features:
Simple structure, low power consumption.
Unique wheel design for gentle washing and minimal fines loss.
Capacity up to 20-400 tph.
Often paired with screw washer for higher cleaning intensity.

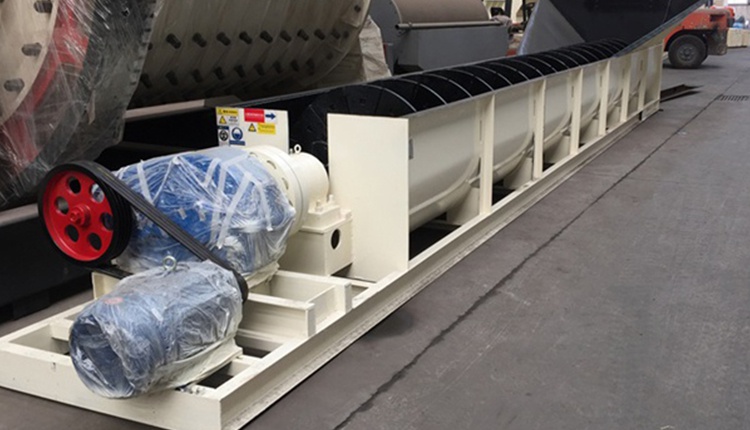

Best for: Intensive cleaning of sand, removal of silt and clay, and dewatering.
Key Features:
Single or double screw design.
Adjustable overflow weir to control fines content.
Heavy-duty construction with wear-resistant liners.
Ideal for materials with higher clay content.

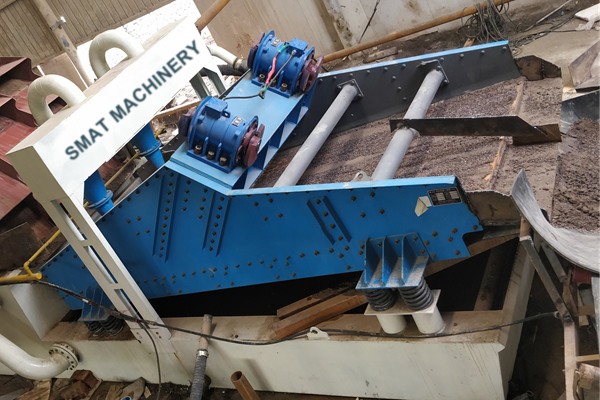

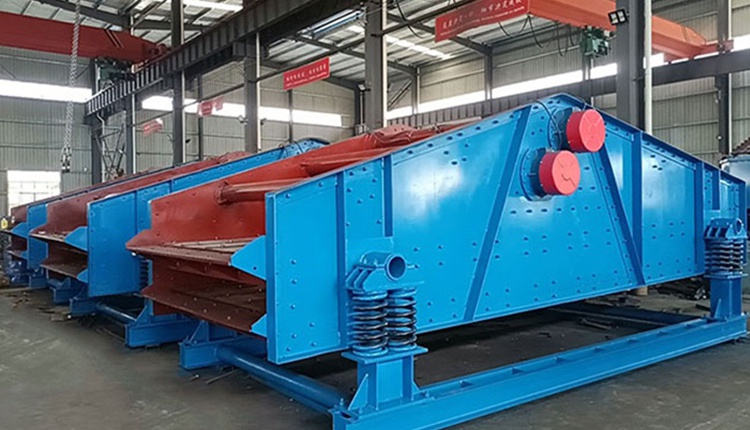

Dewatering Screen
Best for: Final dewatering of sand and fine aggregates.
Key Features:
High G-force linear motion for maximum water removal.
Polyurethane screen panels – long life, non-clogging.
Achieves product moisture as low as 12-15%.
Essential for producing stackable, market-ready sand.
Redefining sand washing profitability: a one-stop system from coarse screening to fine sand recovery. Designed specifically for Philippine conditions. More than just sand washing, it's about ensuring you don't waste a single ton of valuable fine particles.
| Advantage | What It Means For You |
| Designed for Local Materials | All equipment handles high‑moisture, clay‑laden aggregates without clogging. |
| Water‑Saving Technology | Hydrocyclones & sand recovery units recycle >90% process water; dewatering screens produce stackable sand. |
| Mobile Options | Wheel‑mounted screening, washing, and recovery plants move with your projects – no foundation needed. |
| Local Stock & Support | Warehouses in Quezon, Bulacan, Cebu, Davao – genuine wear parts ready when you need them. |
| Filipino Engineers On‑Site | Installation, commissioning, training – all handled by local English/Tagalog‑speaking team. |
| Peso Payment Accepted | Simplify procurement with local currency payments. |
| Comparison Points | Wheel Sand Washer | Spiral Sand Washer | Fine Sand Recovery System |
| Core Function | Washing, Preliminary Dewatering | Intensive Washing, Dewatering, Grading | Fine Sand Recovery, Slurry Separation, High-Efficiency Dewatering |
| Working Principle | The impeller drives the sand to tumble and rub in water, impurities are carried away by water flow. | Spiral blades push the sand to tumble and move upwards, performing friction washing and dewatering during the process. | Slurry is concentrated and classified by a hydrocyclone, then dewatered by a high-frequency vibrating dewatering screen, separating water, mud, and sand. |
| Ideal Feed Material | Natural sand or manufactured sand with low clay content (<10%). | Materials with high clay content, difficult to wash (e.g., quarry tailings, heavy mineral sand). | Wastewater from sand washers, lost fine sand slurry, muddy water. |
| Capacity | 5-200 t/h | 20-300+ t/h | 30-650 t/h wastewater processing |
| Investment Cost | Lower initial investment cost, high cost-effectiveness. | Higher cost than wheel washers due to capacity and complexity. | An additional investment for efficiency and recovery, but with a fast ROI. |
| Key Advantage | Simple structure, easy maintenance, low cost. | High cleaning efficiency, large capacity, multi-functional (wash, dewater, classify). | Directly generates profit, eco-friendly, increases total yield, reduces tailings. |
| Decision Advice | Ideal for small-to-medium plants with cleaner materials and a limited budget. | Ideal for large-scale projects with dirty, high-clay feed material and strict product cleanliness requirements. | Highly recommended to be used alongside wheel or spiral washers. Essential for increasing revenue and achieving eco-friendly production. |

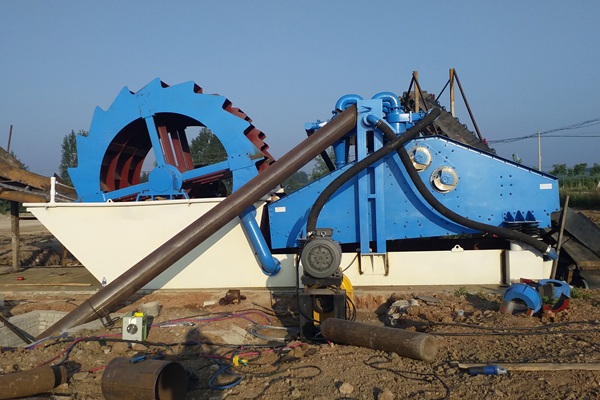

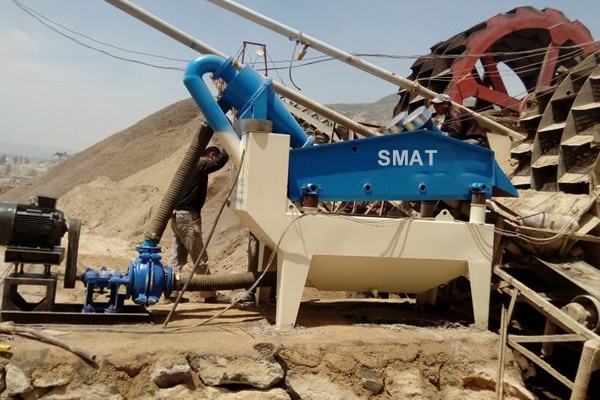

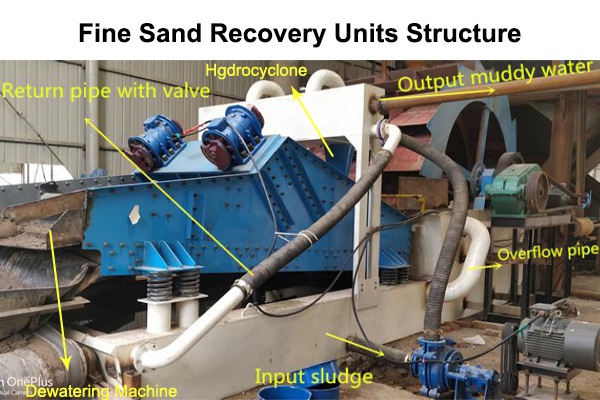

Hydrocyclone + Dewatering Screen = Sand Recovery Unit
This unit combines washing and dewatering. It recovers fine sand that would otherwise wash away—turning lost material into profit. And because it’s a single, closed system, your site stays cleaner: no wet piles, no muddy overflow, no constant pond cleaning.
With a Sand Recovery Unit, you can:
Recover more — capture 10-15% of fine sand that normally ends up in the pond
Work cleaner — no spilled slurry, less mess, fewer hours spent on clean-up
One machine, one spot — compact design fits anywhere, keeps the site organized
Payback in 6-12 months — after that, every recovered ton is pure profit

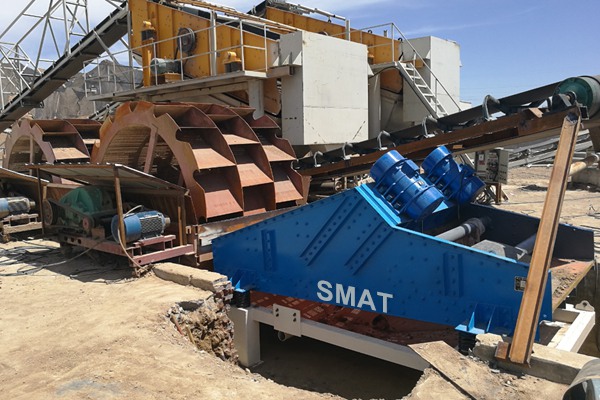

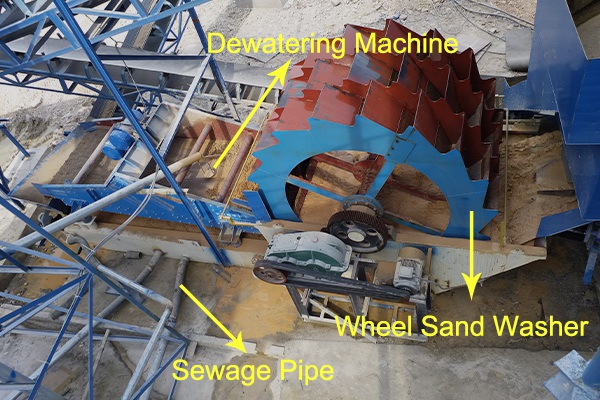

Why Choose this Unit?
The wheel washer scrubs away clay; the dewatering screen instantly drops moisture below 15%. No extra conveyors, no wasted space, no waiting for sand to dry. Designed for Philippine materials—handles high clay, high moisture without clogging.
With this unit, you can:
10-15% more saleable product — no loss between equipment or in wet piles
Half the space — one compact unit fits where two machines won't
Payback in 6-12 months — after that, pure profit
Whether you operate Stationary or Mobile equipment, consistent production relies on high-quality wear parts. SMAT maintains a local parts warehouse in the Philippines to ensure fast supply and minimize your downtime.
End-to-End Service, Mula sa Simula Hanggang Wakas: From design and professional installation to commissioning and scheduled maintenance, we offer a true worry-free, one-stop solution for your crushing machine's entire lifecycle.
The Problem:
In a typical sand washing operation, 10-15% of the total feed ends up as fine particles (<0.2mm) that overflow with the water. Without a recovery system, these fines settle in ponds, eventually becoming sludge that you pay to remove.
The Cost:
For a 100 tph plant operating 10 hours/day, that’s 100t-150 tons of lost product daily. At PHP 500/ton, you’re losing PHP 50,000-75,000 every single day. Over a year, that’s PHP 15-20 million in lost revenue.
The Solution:
A Sand Recovery Unit captures these fines and turns them into a saleable product. Typical payback period: 6-12 months.
Another Hidden Cost: Wet Sand
Wet sand (moisture >20%) is heavier to transport, difficult to handle, and often sold at a discount. A Dewatering Screen reduces moisture to <15%, giving you:
Lower transport costs (you’re not paying to move water).
Higher selling price (dry sand commands a premium).
No stockpile drainage time – product is ready immediately.
SMAT provide various concrete and crushing machine for your project.
