It can be independent of the construction site and is suitable for small and medium-sized projects.
Are you looking for high-performance concrete pump trucks that deliver faster pouring, lower fuel costs, and unmatched reliability? At SMAT Machinery, we engineer cutting-edge pump trucks designed to maximize productivity on any job site—from high-rise buildings to infrastructure projects. SMAT has standard concrete boom pump truck, concrete pump with mixer machine, mixer truck with boom pump. various options for your project.

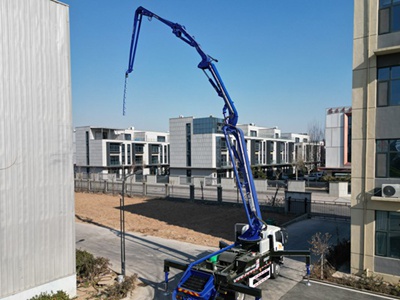

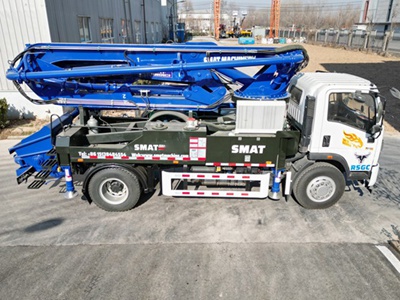

Concrete Boom Truck
Chassis Model: Howo/Dongfeng/Shacman/Sinotruck
Boom reach: 28-63 meters
360° full rotation capability
Concrete Boom Pump with Mixer
Integrated twin-shaft mixer (capacity: 6-9 m³)
Simultaneous mixing and pumping
Ideal for remote sites with limited concrete supply
Mixer Truck with Boom Pump
8-12 m³ transit mixer + boom pump
Continuous operation capability
Reduced equipment footprint on site
| FULL LENGTH | 9400mm | 8200mm | 10500mm | 10450mm | 12600mm | 13850mm |
| TOTAL HEIGHT | 3300mm | 3260mm | 3360mm | 3800mm | 3950mm | 4000mm |
| TOTALWIDTH | 2450mm | 2350mm | 2500mm | 2500mm | 2550mm | 2550mm |
| SELF WEIGHT | 16000Kg | 17000Kg | 26000Kg | 23000Kg | 35000Kg | 44000Kg |
| BOOM VERTICAL HEIGHT | 21.9m | 26m | 38m | 40m | 50m | 62.5m |
| BOOM HORIZONTAL REACH | 18.1m | 21.6m | 33.5m | 36.2m | 46m | 58.5m |
| BOOM VERTICAL DEPTH | 8m | 10.5m | 22m | 24.5m | 36.5m | 47m |
| BOOM FOLDING | 3Z | 5RZ | 5RZ | 5RZ | 6RZ | 6RZ |
| EACH ARM LENGTH | 7100mm/6100mm/4900mm | 5500mm/4100mm/3900mm/3900mm/4300mm | 7500mm/6200mm/6100mm/6700mm/6700mm | 8100mm/6600mm/6000mm/7200mm/7600mm | 10000mm/8250mm/8050mm/9450mm/5750mm/4300mm | 11500mm/9030mm/9300mm/10270mm/11030mm/7500mm |
| EACH ARM CORNER ANGLE | 90°/180°/180° | 90°/180°/180°/212°/180° | 90°/180°/180°/230°/212° | 90°/180°/180°/207°/211° | 90°/180°/180°/243°/220°/110° | 90°/180°/180°/230°/180°/180° |
| END HOSE LENGTH | 3m | 3m | 3m | 3m | 3m | 3m |
| TURNTABLE ROTATIONANGLE | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° |
| FRONT OUTRIGGER WIDTH | 4850mm | 5130mm | 6800mm | 8100mm | 9500mm | 12870mm |
| REAROUTRIGGERWIDTH | 3300mm | 5000mm | 8350mm | 9000mm | 9800mm | 12245mm |
| LONGITUDINAL DISTANCE OF FRONT AND REAR LEGS | 5200mm | 5100mm | 6800mm | 7400mm | 10400mm | 12347mm |
The parts used in SMAT concrete pumps are all top brands. Only by strictly demanding every part and link, SMAT can deliver the most satisfactory machine to customers.
We adopt double pumps and double-circuit open hydraulic systems. The main pump oil circuit and S-valve swing oil circuit are independent of each other, so it is easy to determine the source of failure and eliminate it in time
01

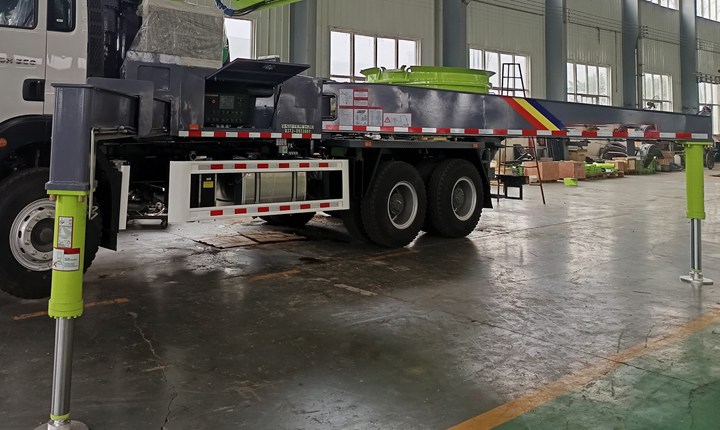

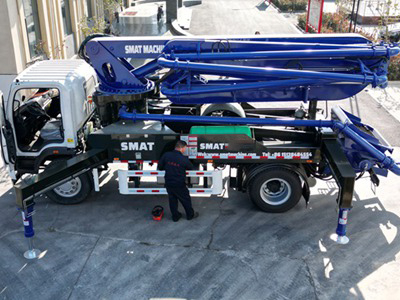

Stabilizing legs extend hydraulically to balance the truck during operation. They prevent tipping and ensure safety, especially when the boom is fully extended.
02

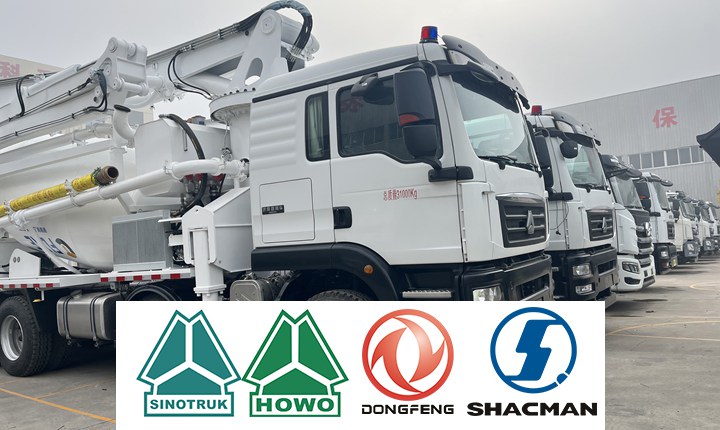

The heavy-duty chassis supports the entire system. Designed for mobility, it integrates the engine, cabin, and pumping components for on-site maneuverability. Various chassis brand optional for your requirement.
03

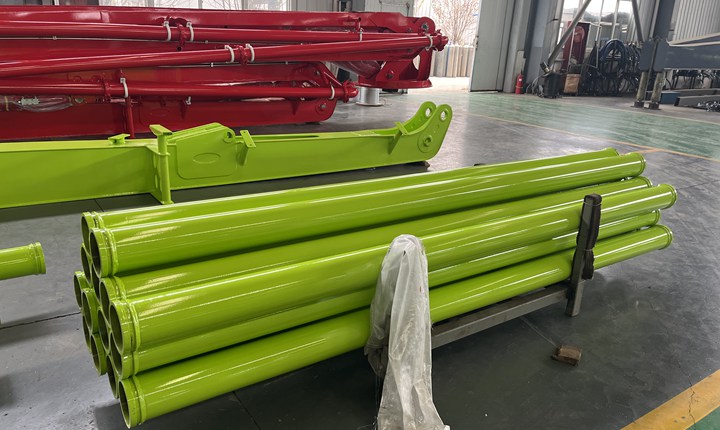

The pump pipeline is a composite double. layer wearresistantconveying pipe,with the wear-resistantdegree reaching to 50000 cubic meters. Steel or rubber pipes transport concrete from the pump to the boom end. Sections are connected with quick-release clamps for easy assembly and cleaning.
04

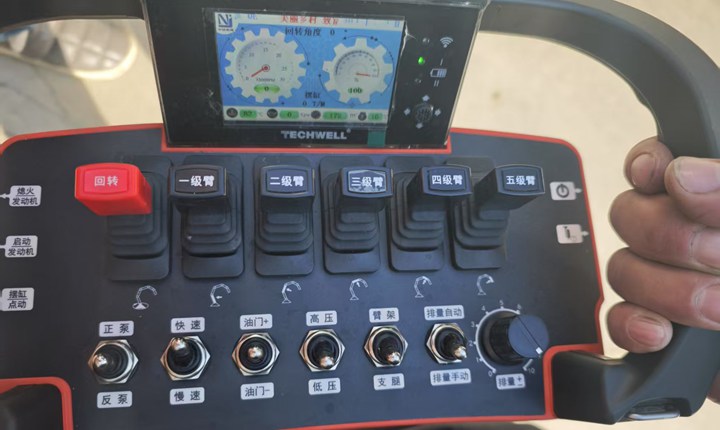

Adopt German HBC controller to realize faultself-detection. Display alarm, solve problems quickly. Adopt modular design and easy installation. It can be customized according to engineering needs to improve the adaptability and flexibility of the equipment.In case machine parts fail, regional debugging can be used to solve the problem and avoid time costs.
05

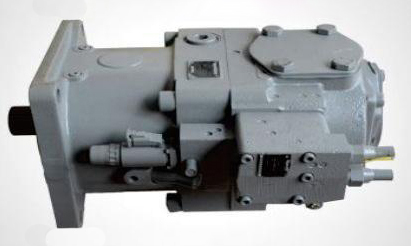

We adopt double pumps and double-circuit open hydraulic systems. The main pump oil circuit and S-valve swing oil circuit are independent of each other, so it is easy to determine the source of failure and eliminate it in time.
06
Hydraulic hosejoint offamousbrand, ensure the safety of hydraulicsystem and no leakage.
07
Adopts Rexroth toensure the reliable operation system,reduces pump time and maintenance cost.Protect the dieselengine.
08
Hydraulic hosejoint offamousbrand, ensure the safety of hydraulicsystem and no leakage.
09

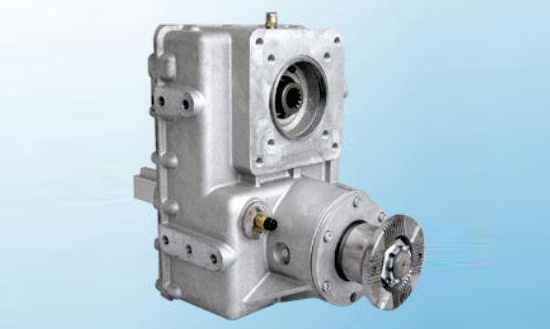

lmported transfer case, reduce waste during system running.
10
Our products are shipped to various sites of road construction, bridge construction, and real estate construction all over the world.
SMAT takes every order seriously. Every step of the process is checked by special person. Every important component is pre-tested before shipment, especially the mixer machine. It also ensures that free spare parts are given to the customer to avoid any possible accidents.
01
SMAT has nearly 30 years of export experience. The concrete pump manufactured by us have been exported to different countries. The Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
02
SMAT provides engineers with on-site installation guidance, commissioning, and training services. SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
03
SMAT provides varies concrete machines for your project.
